SAS Converter Boards

TCC stocks a variety of SAS, Mini-SAS, and SATA conversion boards and adapters:

SFF-8470 female to SFF-8484 female Adapter Board Converters

SFF-8470 female to SATA x4 female Adapter Board Converters

SFF-8470 female to SFF-8088 male Adapter Cable

SFF-8087 female to SFF-8088 female Adapter Board Converters

SFF-8470 female to SFF-8484 female Adapter Boards



SFF-8470 to SFF-8484

This Adapter Board features SFF-8470 x2 Female External to
SFF-8484 x2 Female Internal ports.

A standard SFF-8470 cable with thumbscrews will mate to these external ports.



Part Numbers
2943226 (Backplane / Target-Based)
2943229 (Controller / Host-Based)
SFF-8484 to SFF-8470 Adapter Board
Front View: Takes SFF-8470 Cables with Thumbscrews
SFF-8484 to SFF-8470 Adapter Board
Internal View: Takes SFF-8484 Cables



SATA to SAS Converter / Adapter

SATA x4 to SFF-8470 Female

Convert internal 4-Port SATA to a single external SAS 4X (SFF-8470) with our internal adapter boards.



Part Numbers
294476 Drive-Based) 1-1 Pinout
294479 (Controller-Based) 1-7 Pinout
8470 port to SATA

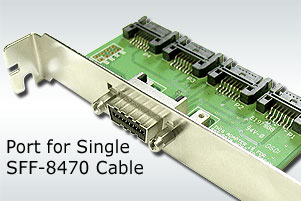

Front View: Takes an SFF-8470 Cable with Thumbscrews
SATA ports to 8470

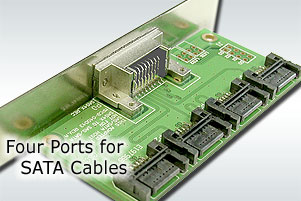

Internal View: Takes SATA Cables



Call for pricing

(800) 832-2225 USA & Canada

(714) 835-1081

or email your RFQ

Mini-SAS to Mini-SAS Converters

Convert your internal Mini-SAS SFF-8087 to external SFF-8088 with our internal single or dual Mini-SAS converter boards.



Mini-SAS Converter / Adapter
SFF-8087 Female to SFF-8088 Female

Change your internal SFF-8087 to accept external SFF-8088 cables with this female adapter Mini-SAS converter board.



Part Number
212636AD Standard Plate
8088 to 8087 adapter

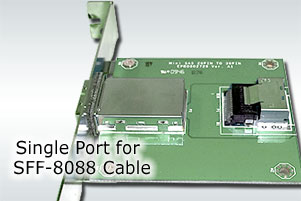

Front View: Takes an SFF-8088 Cable
8088 to 8087 adapter
Internal View: Takes SFF-8087 Cables



The below parts are the same female SFF-8087 to female SFF-8088 adapter board as above, but with dual ports.

Each board has two female SFF-8087 internal ports and two female SFF-8088 external ports with plates.



Part Numbers
222636 Standard Plate
222636A Low Profile Plate
External 8088 and Internal 8087
Front View: Takes SFF-8088 Cables
External 8088 and Internal 8087
Internal View: Takes SFF-8087 Cables





SAS to Mini-SAS

SFF-8470 Female to SFF-8088 Cable

Plug your standard SAS 4X SFF-8470 male cable into the SAS 4X female recepticle to convert it to an external Mini-SAS SFF-8088.

Part Number
AD8470F-8088M15
Female 8470 to 8088 Cable
